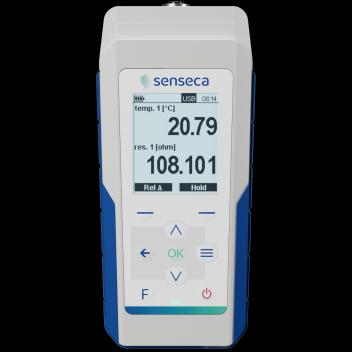

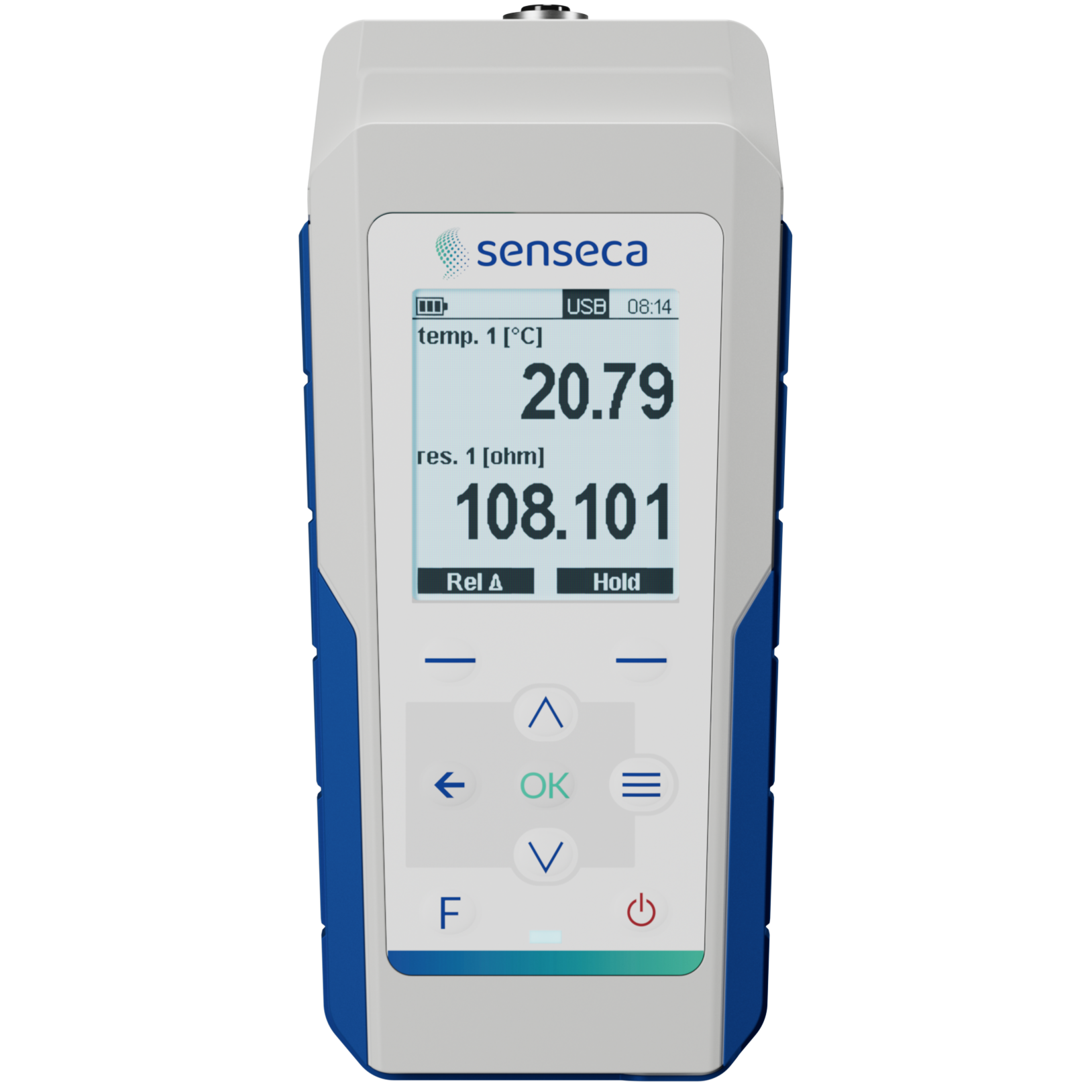

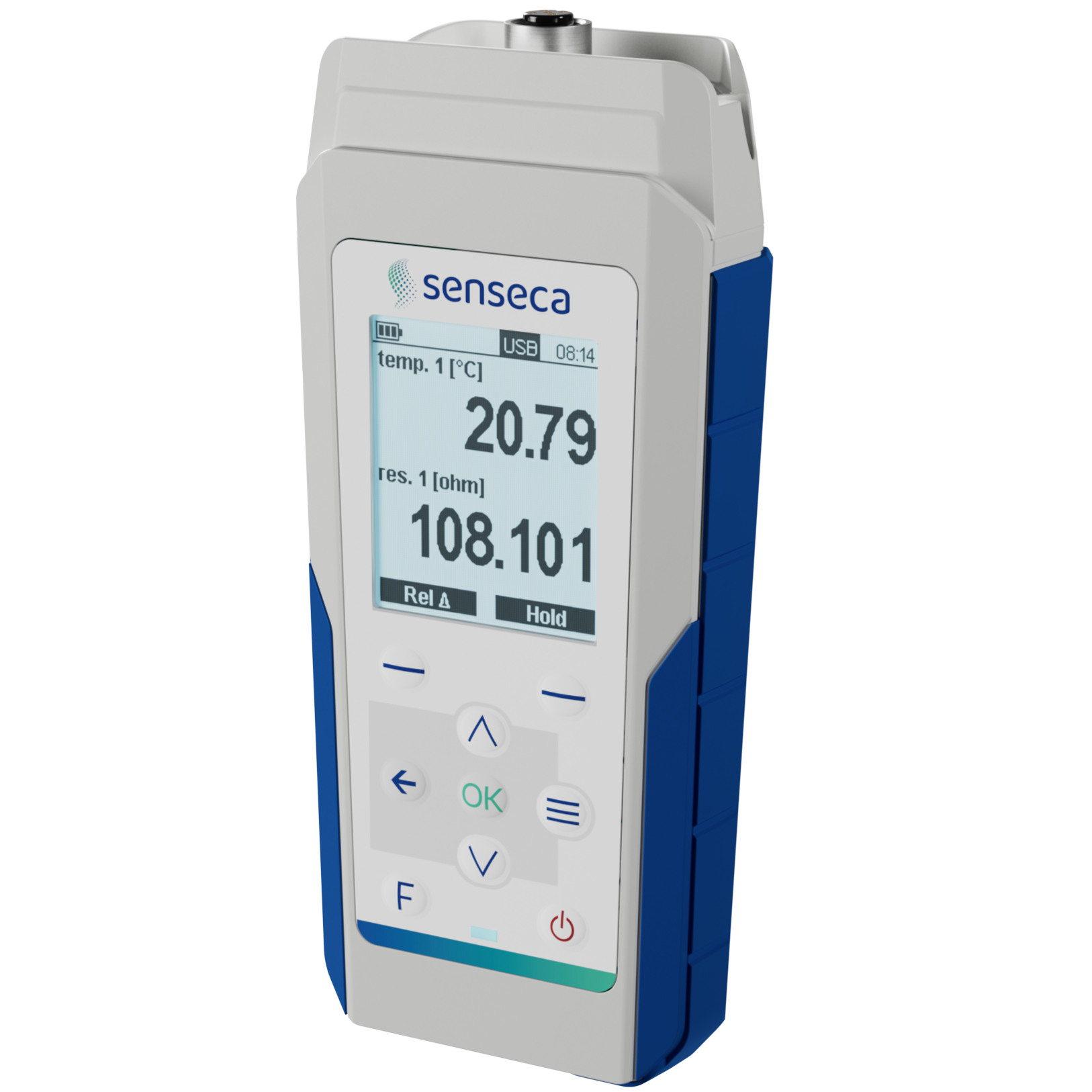

The Senseca PRO 11x is a 2-channel portable temperature instrument designed for use with thermocouple probes. It is compatible with a wide range of thermocouples, including K, J, T, N, R, S, B, and E types. These portable instruments deliver fast and precise results by calculating temperature differences between the two channels.
The PRO 11x is designed to work with 4-wire Pt100 temperature sensors. Both models do not require additional software. In addition to CSV files, the free user-friendly basic ProXware PC application software allows for the analysis of a large amount of logged data.
Calibration reports or DAkkS/ACCREDIA certificates can be provided upon request. Usefully, the device keeps track of the last calibration date, issuing a reminder when recalibration is due.
Depending on the thermocouple probes used, various measurement ranges are supported by the PRO 13X:
K: -220.0…+1372.0 °C / -364.0…+2501.6 °F
J: -200.0…+1100.0 °C / -328.0…+2012.0 °F
N: -200.0…+1300.0 °C / -328.0…+2372.0 °F
S: -50.0…+1750.0 °C / -58.0…+3182.0 °F
T: -200.0…+400.0 °C / -328.0…+752.0 °F
E: -60.0…+850.0 °C / -76.0…+1562.0 °F
B: +300…+1750 °C / +572…+3182 °F
R: +870…+1450°C / +1600-2640°F
The manometer features a user-friendly and easily readable 140 x 160 dot matrix backlit text display that offers various measurement views, including real-time plot diagrams with added statistical functions like Min, Avg, Max.

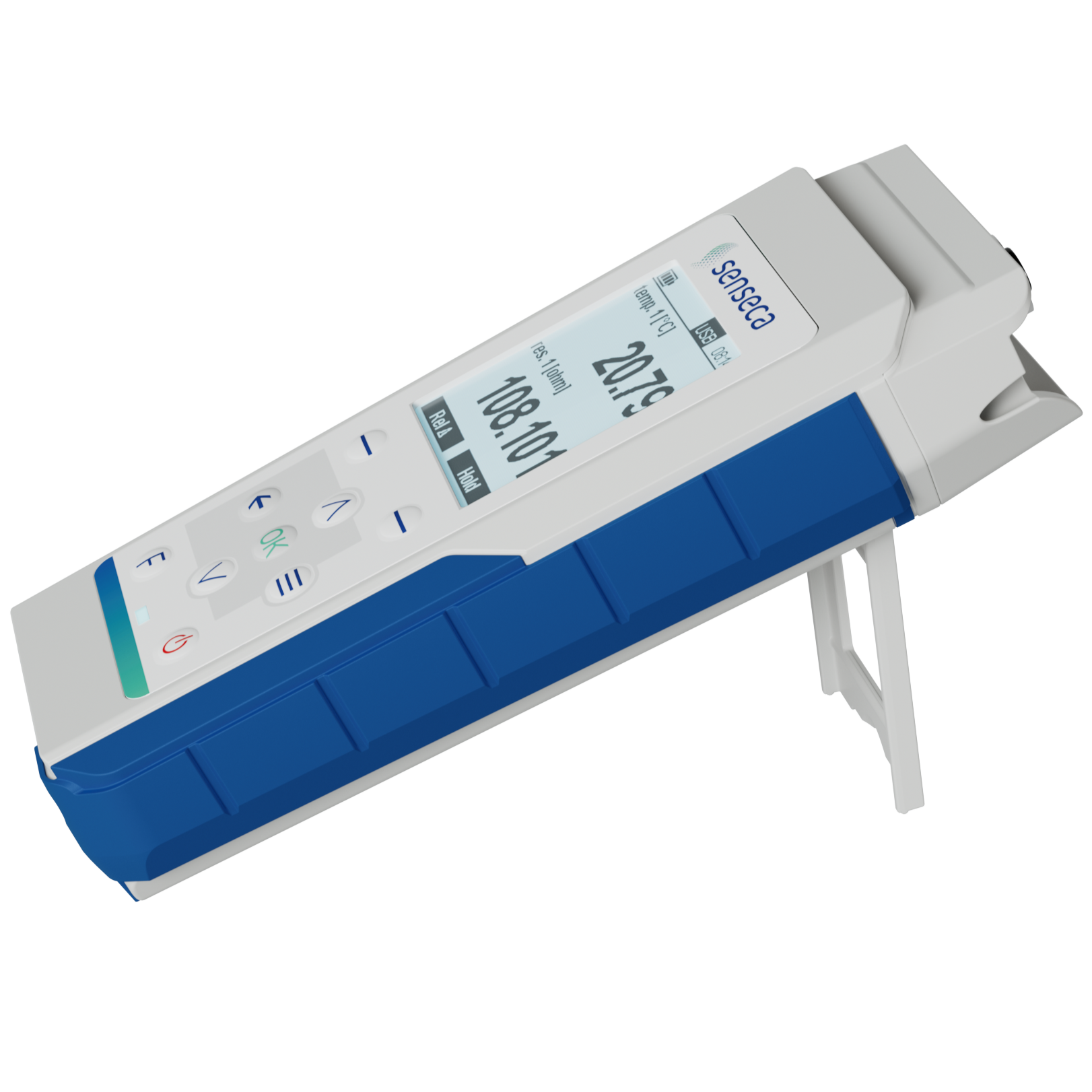

Users can set up favorite functions for quick access through the menu list. The IP67 waterproof housing, equipped with a built-in foldable stand and magnet, provides flexibility and durability, with resistance to shocks and impacts. It also features a long-lasting battery and can be connected to an external 5V power supply via a USB-C port.
Weight: 340 g approx.
Datasheet link:
https://portable.senseca.com/tradepro/shopen/artikel/allgemein/DSH_PRO111_115_EN.pdf
